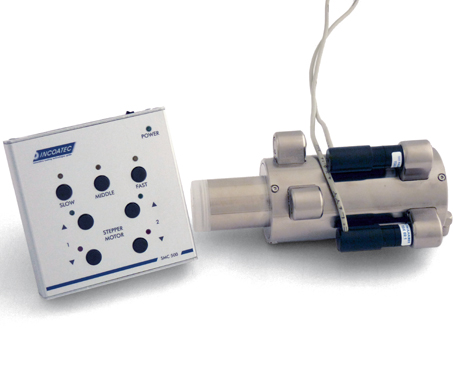

Motorized optics housing with control unit SMC500

Stepper motor control

As an alternative to a manual alignment of the optics, and for hands-off environments, a motorization for the housing is available.

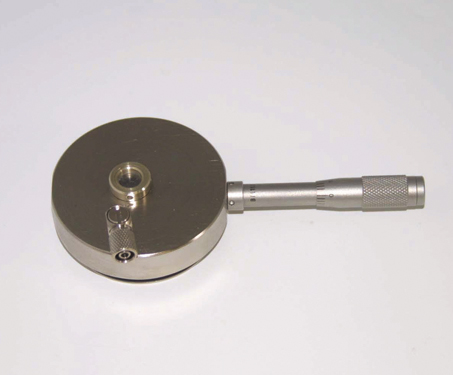

Variable divergence aperture reduces the divergence at the expense of intensity.

Divergence aperture

The divergence of the beam can be reduced using this tool and very long unit cells can be characterized.

Photodiode Incoatec PHT with mulitmeter. The unit has a built-in electrometer amplifier, and it delivers 0-10 V output. A calibration certificate for Cu and Mo radiation will be provided.

Pin diodes

To measure the flux during alignment a photodiode is provided.

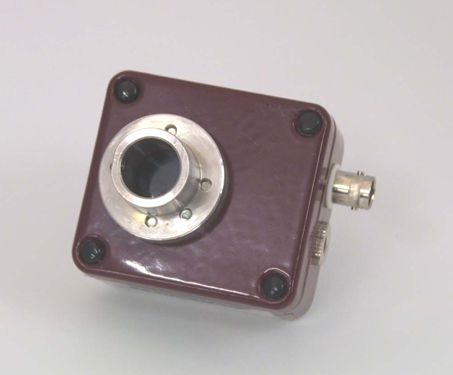

X-ray sensitive camera MarCam

X-ray cameras

X-ray sensitive cameras, such as Bruker Xyclops or MarCam are very useful for finding the beam and for coarse alignment of the optics.

The Incoatec enclosure IXE

Incoatec X-ray Enclosure IXE



The Incoatec X-ray Enclosure IXE serves as a radiation protection box for diffraction experiments. It is designed for the use with an Incoatec Microfocus X-ray Source IμS and its corresponding high-voltage generator ISG only. Full electronical and radiation safety is only guaranteed with this equipment. Additional devices such as goniometers, detectors, temperature stages, etc may be installed inside the cabinet.

Dimensions

Enclosure ready for operation: 2414 mm x 1815 mm x 1652 mm
Space within the upper, radiation safe part: 975 mm x 1640 mm x 1470 mm



System Weight

The maximum weight of the empty enclosure is 660 kg.



Safety Certifications and Values

Electrical safety: DIN EN 60204-1:2006/A1-2009
Functional safety: DOS 49-1:2005, DIN EN 61508,1-7 (VDE 0803):2011, DIN EN 61511,1-3:2005
Radiation safety:  Leakage < 0.5 μSv/h H* (10) measured at 44 W with a IμS-Ag plus Montel optics. Primary beam must impinge on one of the side walls.

IXE with IµS at customer site

The IXE offers a solution that will exactly match the demands of your research.

  • Large interior room with enough space for all common goniometers, detectors or dual wavelengths solutions
  •  Guaranteed radiation safety for all IμS X-ray sources
  • Compliant with latest functional safety standards by integrated Pilz safety controller, optional external emergency shut-off button, separated AC and DC control cabinet
  • Detachable side-panels for easier service and a detachable rear panel - integrated in the safety line
  • Numerous radiation safe feedthroughs
  • Two portholes for liquid nitrogen supply and additional storage shelf for the dewar
  • Breadboard for flexible experimental set-ups, additional guide rails on the ceiling
